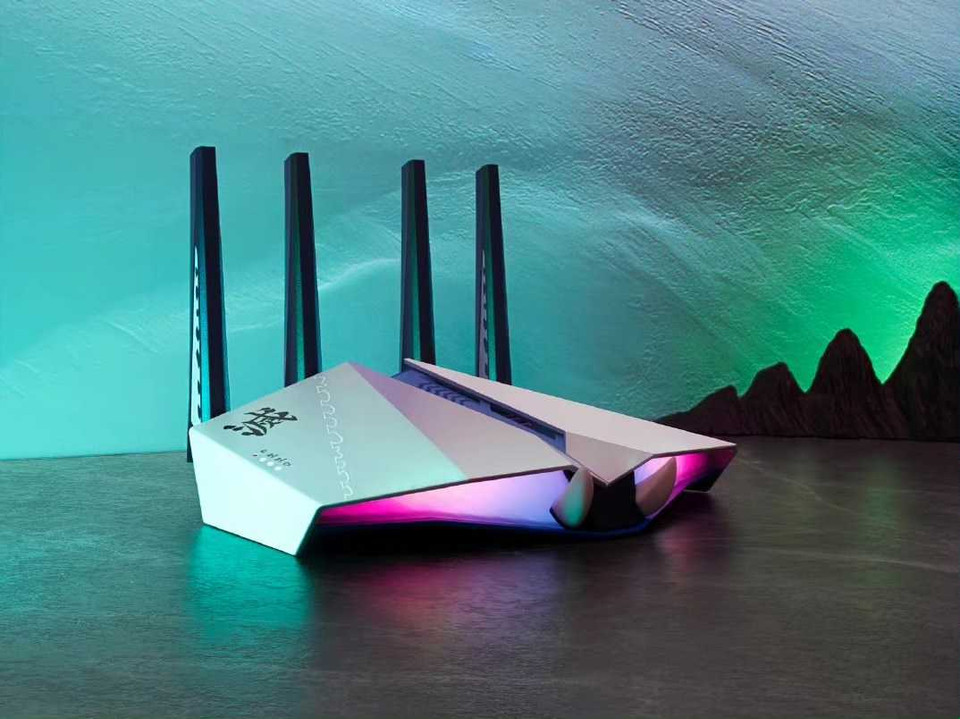

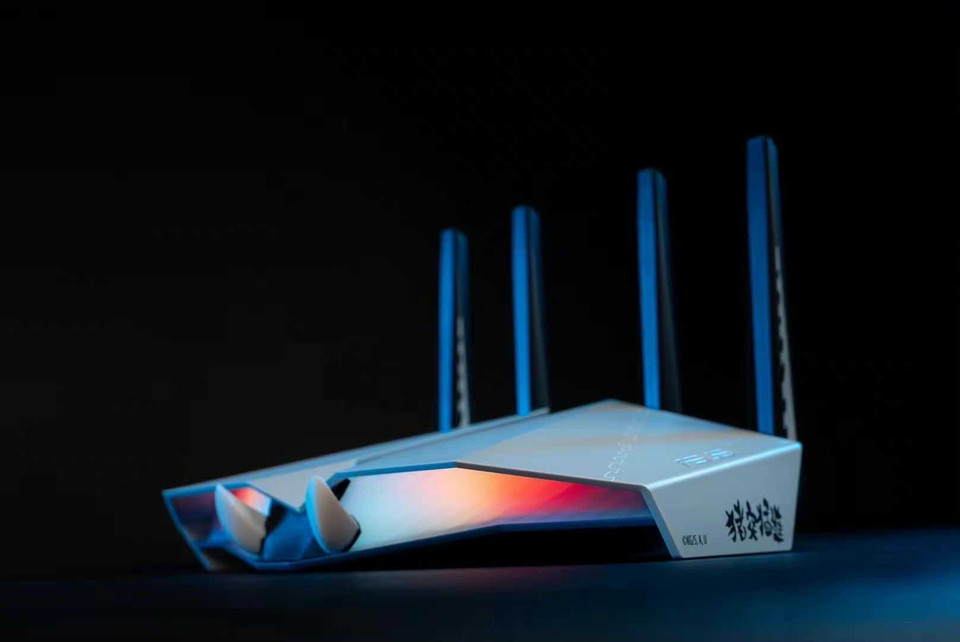

The RT-AX82U is designed by Hashibira Inosuke and has two small defenses on the front. The RT-AX86U is insparied by Zenitsu Agatsuma by his yellow outfit.
- New-generation WiFi 6 - Enjoy ultrafast speeds up to 5400 Mbps with the latest WiFi 6 (802.11ax) and 160MHz channels
- Mobile Game Mode - Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
- True 2 Gbps wired and wireless speeds - Aggregated 2 Gbps WAN connections, wired 2.5 Gbps port and WiFi 6
- ASUS AiMesh support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
- Commercial-grade home network security – Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 and advanced Parental Controls to protect your home
RT-AX86U Spec
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5700 ultimate AX performance : 861+4804Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 3
Internal PCB antenna x 1
Internal PCB antenna x 1
Transmit/Receive
2.4GHz 3x3
5GHz 4x4
5GHz 4x4
Processor
RT-AX86U:1.8GHz quad-core processor
RT-AX86S:1.8GHz dual- core processor
RT-AX86S:1.8GHz dual- core processor
Memory
RT-AX86U: 256 MB Flash
1 GB RAM
RT-AX86S: 256MB Flash
512MB RAM
1 GB RAM
RT-AX86S: 256MB Flash
512MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Ports
RT-AX86U:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen 1 x 2
RT-AX86S:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen 1 x 2
RT-AX86S:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
Button
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
RT-AX86U:
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
RT-AX86S:
Power x 1
2.4GHz x 1
5GHz x 1
WAN x 1
LAN x 4
WPS x 1
USB x 1
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
RT-AX86S:
Power x 1
2.4GHz x 1
5GHz x 1
WAN x 1
LAN x 4
WPS x 1
USB x 1
Power Supply
RT-AX86U : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
RT-AX86S : 12 V with max.3 A current / 19.5 V with max. 2.31 A current
RT-AX86S : 12 V with max.3 A current / 19.5 V with max. 2.31 A current
Package content
RT-AX86U:
RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
RT-AX86S:
RT-AX86S WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
RT-AX86S:
RT-AX86S WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
814.5 g
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : Yes
WTFast : No
WTFast : No
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
Administration
Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
RT-AX82U Spec
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 2x2
5GHz 4x4
5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
USB 3.2 Gen 1 x 1
Button
WPS Button, Reset Button, Power Switch, LED on/off
LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1
2.4G x 1
5G x 1
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 19 V with max. 1.75 A current
Package content
RT-AX82U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Product Weight (g)
740 g
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : Yes
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
Administration
Operating mode : Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
Feedback system : Yes
System log : Yes
